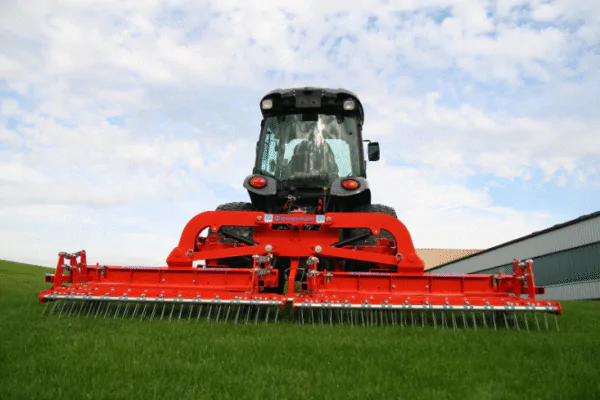

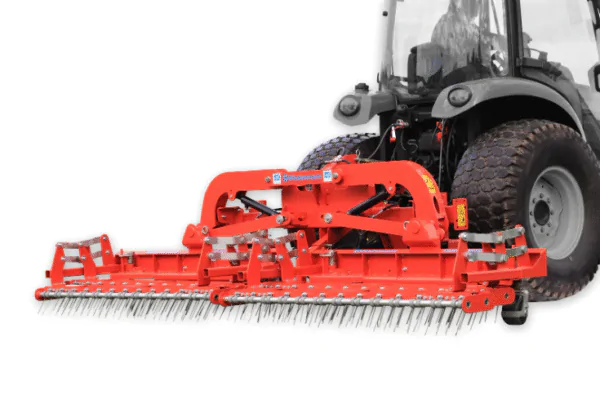

WIEDENMANN TERRA RAKE – FOLDING
The Wiedenmann TERRA RAKE – FOLDING is a high-performance verticutting harrow, engineered for heavy-duty, continuous use on natural and artificial turf. Designed to remove thatch, dead plant material, and surface roots efficiently, it ensures healthy, resilient playing surfaces while maintaining high area coverage. Its foldable design allows for wide working widths, offering flexibility and convenience for larger maintenance tasks.
Specifications:
| Model No. | 5230040 | 5240040 |
| Description: | Terra Rake 350 – Folding | Terra Rake 460- Folding |
| Working Width: | 3.5m | 4.6m |
| Weight: | 560 kg | 660 kg |
| Tractor HP (min): | 40 | 60 |
Key Features:
Effective Thatch Removal
At travel speeds of 10 to 15 km/h, the parallelogram-guided scarifying tines vibrate aggressively to lift and remove thatch, placing it on the surface for easy collection.
Optimised Tine Arrangement
Four rows of tines ensure blockage-free scarification between individual tines, delivering consistent results across the entire working width.
Hydraulic Folding Mechanism
The two-part unit is easily moved from working to transport position via hydraulic cylinders, making it safe and simple to fold for transport or storage.
Wide Working Widths
Available in 3.50 m and 4.60 m working widths, the foldable design provides high coverage efficiency without sacrificing precision.
Durable Construction
Built for heavy-duty, continuous use, the Terra Rake – Folding combines rugged stability with long-lasting performance, ideal for professional turf maintenance.
Tractor Compatibility
Designed for rear 3-point linkage, it can be integrated easily with a range of tractors for flexible operation.
